Smart Management
End-to-end IoT solutions for utility, environmental, and infrastructure monitoring. Automate billing, gain real-time insights, and manage assets with LoRaWAN sensors, smart meters, and secure gateways—designed for property, industrial, and remote applications.

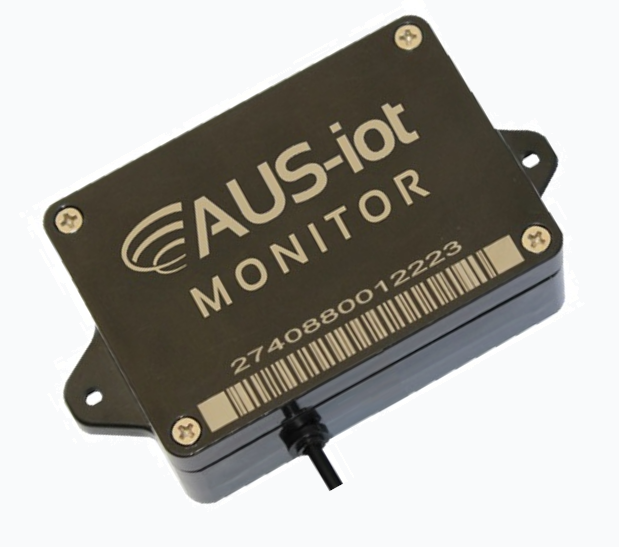

AUS‑iot Monitor
The ultimate smart utility monitoring solution. Our advanced IoT device supports domestic and bulk water meters, single-phase electricity, and contact counting, delivering real-time data collection. When used in conjunction with our AUS-iot System suite of software, it enables automated billing and comprehensive property management in one compact unit. Featuring the AUS-iot Hall Effect probe for enhanced, accurate, and reliable counting across a range of water meters.
Multiple Meter Support
water, gas, electricity - monitor all utilities from one device
Real-time Alerts
Instant notifications for leaks, bursts, and unusual consumption
Automated Billing
Zero manual readings with accurate, automated bill generation
Cloud Integration
Secure data transmission with web portal and mobile app access
Easy Installation
Retrofit existing meters with minimal disruption
Technical Specifications
The following are technical specifications for AUS-iot Monitor inputs and radio:
Features
- Input options: Contact, Digital, Hall Effect
- Pulse: Width (min): 0.02 sec
- Pulse: Rate (max): 2 Hz
- Contact: Bounce (max): 0.001 sec
- Input: Voltage 0.3 to 3 Vdc
- Tamper detect:
Connectivity
- LoRaWAN: Class A
- Modulation: Spread spectrum
- Region: USA, AUS, EU, SA
- Certification:
- FCC, AN/NZS, EN300220
Environmental
- Protection: IP68
- Storage: -20°C to 70°C
- Operation: -10°C to 50°C
- Life: 10+ years
- Housing: UV resistant
Installation
- Screw/bolt mounting
- Pipe clamp options
- Simple installation / wiring

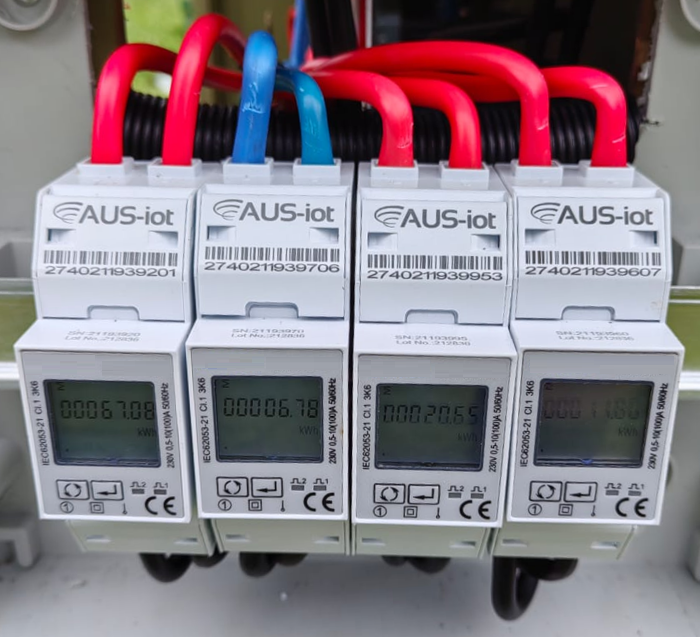

AUS‑iot Electricity
AUS-iot supports integration with third-party LoRa-enabled single and three-phase electricity meters, including models with remote disconnect functionality. These meters enable real-time monitoring, automated billing, and remote control of power supply for residential, commercial, and industrial applications. LoRaWAN connectivity ensures secure, long-range data transmission, while remote disconnect features allow for efficient management of energy usage and rapid response to faults or tampering.
Key Features
Third-Party Meter Integration
Supports LoRa-enabled single and three-phase electricity meters, including remote disconnect models.
Real-Time Monitoring
Continuous data collection for residential, commercial, and industrial power usage.
Automated Billing
Generates accurate bills with zero manual readings.
Remote Disconnect
Remotely control power supply for efficient energy management and rapid fault response.
LoRaWAN Connectivity
Secure, long-range wireless data transmission for reliable operation.
Technical Specifications
The following are technical specifications for AUS-iot Monitor HV inputs and radio:
Features
- Input : 4x High Voltage
- Pulse: Width (min): 0.02 sec
- Input: Voltage 3 to 15 kV impulse
- Pulse: Rate (max): 1 Hz
- Communication: 15km (LOS)
Connectivity
- LoRaWAN: Class A
- Modulation: Spread spectrum
- Region: USA, AUS, EU, SA
- Certification:
- FCC, AN/NZS, EN300220
Environmental
- Protection: IP65
- Storage: -20°C to 70°C
- Operation: -10°C to 50°C
- Life: 5+ years
- Housing: UV resistant
Installation
- Screw/bolt mounting
- Simple installation / wiring

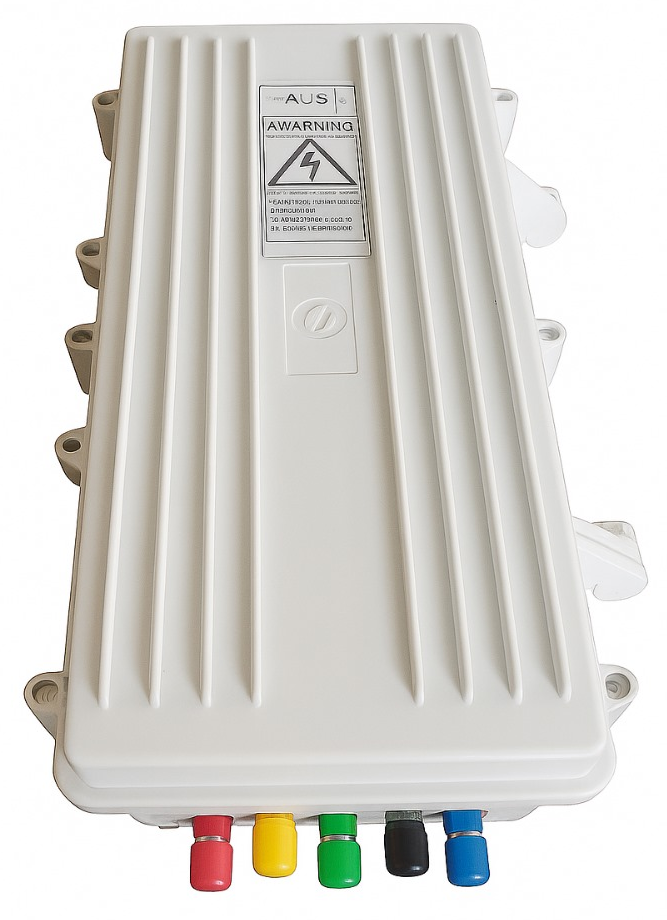

AUS‑iot Monitor HV
The AUS-iot Monitor HV (High Voltage) is a LoRaWAN-enabled high-voltage fence monitoring device designed for game parks, zoo's, estates, farms, and secure perimeters. It provides continuous, 24/7 monitoring of fence voltage and pulse activity, with multi-strand fault detection and geolocated alerts for rapid response. The system is hardened against lightning strikes and operates on long-life batteries, simplifying installation, minimizing maintenance while eliminating the need for manual fence inspections. Real-time notifications to control centres or mobile devices ensure timely detection of faults, interruptions, or tampering, improving perimeter security and operational efficiency.
Key Features
LoRaWAN Connectivity
Long-range, low-power wireless communication for remote monitoring.
Real-Time Notifications
Continuous 24/7 tracking of fence voltage and pulse activity.
Multi-Strand Fault Detection
Monitors multiple wire strands simultaneously for complete coverage.
Geolocated Alerts
Pinpoints the location of faults, interruptions, or tampering for rapid response.
Lightning-Hardened Design
Built to withstand harsh outdoor conditions.
Long-Life
Provides years of maintenance-free operation.
Simple Installation
Easy installation and set up with minimal technical requirements.
Technical Specifications
The following are technical specifications for AUS-iot Monitor HV inputs and radio:
Features
- Input : 4x High Voltage
- Pulse: Width (min): 0.02 sec
- Input: Voltage 3 to 15 kV impulse
- Pulse: Rate (max): 1 Hz
- Communication: 15km (LOS)
Connectivity
- LoRaWAN: Class A
- Modulation: Spread spectrum
- Region: USA, AUS, EU, SA
- Certification:
- FCC, AN/NZS, EN300220
Environmental
- Protection: IP65
- Storage: -20°C to 70°C
- Operation: -10°C to 50°C
- Life: 5+ years
- Housing: UV resistant
Installation
- Screw/bolt mounting
- Simple installation / wiring

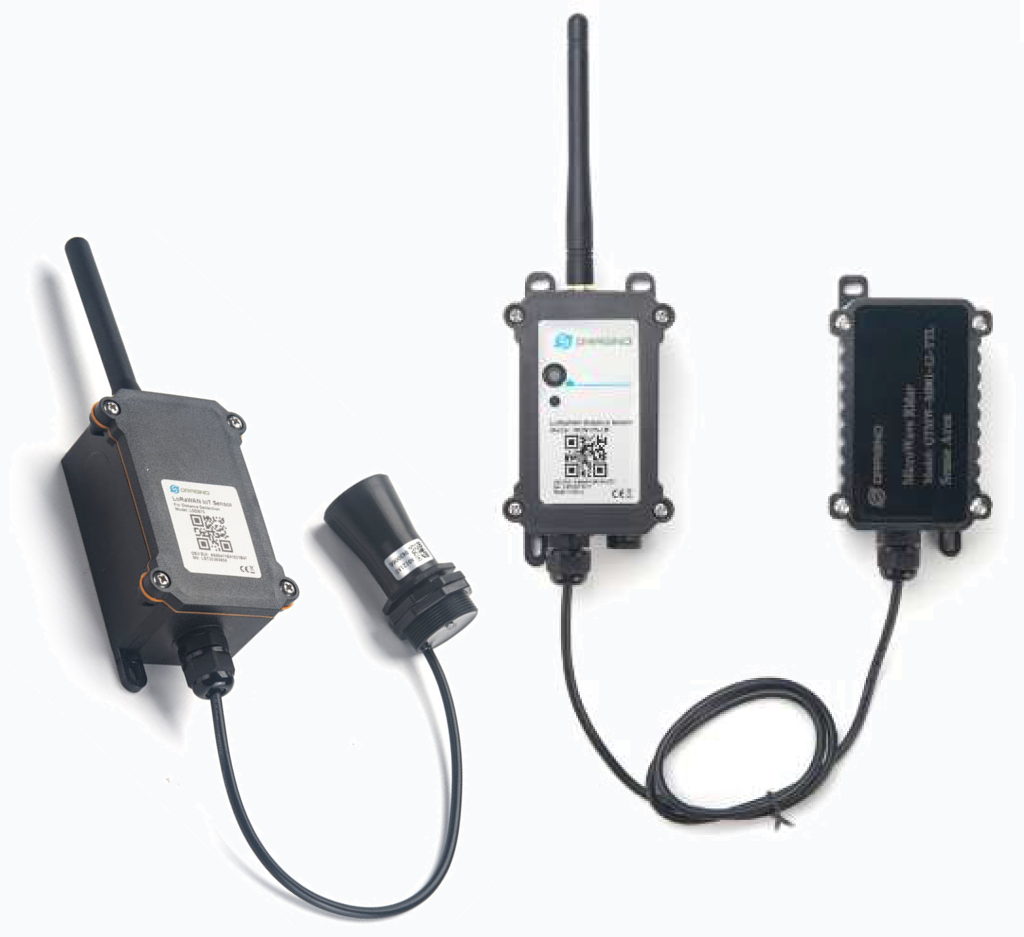

LoRa Distance & Level Sensors
Purpose-built for harsh environments, our LoRa microwave provide reliable, long-range positional monitoring of critical levels, infrastructure and equipment. With up to 15 km communication range and 10+ year battery life, they're perfect for remote and hard-to-reach level or position monitoring. We also offer a range of Ultrasonic sensors for enhanced measurement capabilities. Both variants are offered with a solar option for sustainable energy harvesting.
Key Applications
Sewer & Stormwater
Monitor sewer, stormwater, open channels, reservoirs, and dams with real-time level data to ensure accurate water management, safety, and early flood alerts for rivers, creeks, and drainage systems.
Industrial
Measure corrosive liquids, bulk solids, and industrial slurries without contact. Ideal for chemical storage, silo inventory, and process vessel monitoring to improve safety, accuracy, and operational efficiency.
Agriculture
Monitor farm water tanks, grain bins, and slurry pits to optimise storage, prevent overfill, and manage livestock waste efficiently.
Transportation
Track ballast tanks, tunnel drainage, and railway culverts to maintain vessel stability, prevent flooding, and ensure infrastructure safety.
Environmental
Monitor ponds, wetlands, snow, and rainwater tanks to support conservation, research, and efficient water use while preventing overflow.
Technical Specifications
The following are generic technical specifications for the LoRa level sensors :
Features
- Option: Microwave (IP67)
- Option: Ultrasonic (IP66)
- Range: 0.1 to 20m
- Accuracy: ±2cm + 0.3%
- Communication: 15km (LOS)
Connectivity
- LoRaWAN: Class A
- Modulation: Spread spectrum
- Region: USA, AUS, EU, SA
- Certification:
- FCC, AN/NZS, EN300220
Environmental
- Life: 10+ years
- Operating temp: -40°C to +85°C
- Power: Battery Lithium
- Solar: option
- Housing: UV resistant
Installation
- Magnetic mounting
- Screw/bolt mounting
- Pipe clamp options
- No wiring required

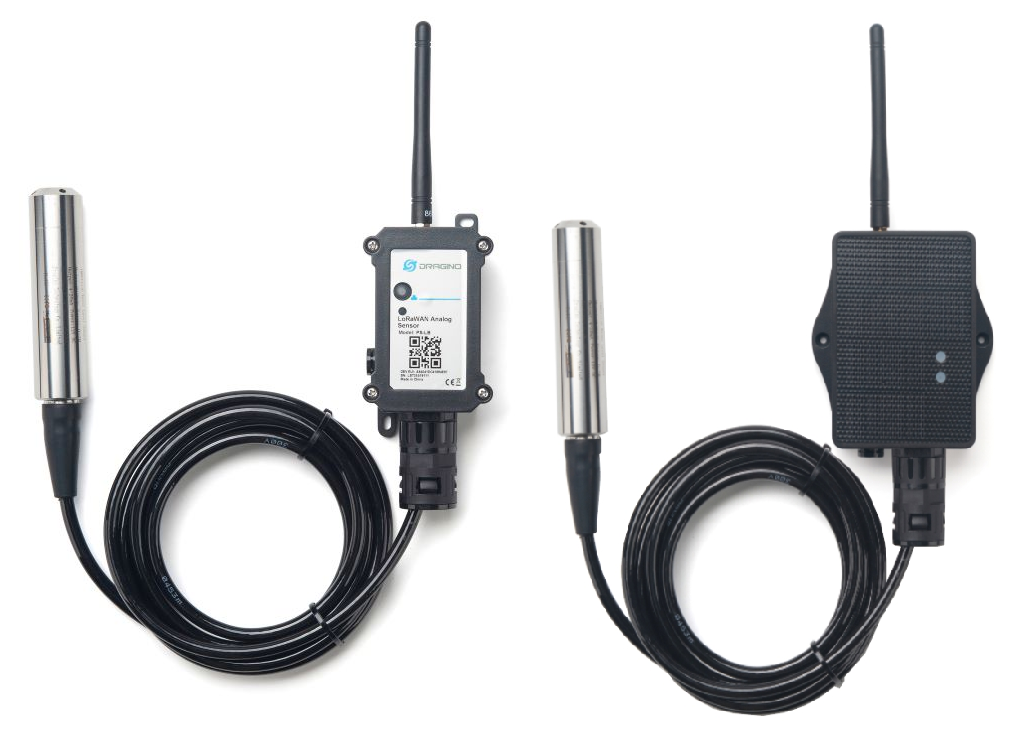

LoRa Pressure Sensors
Purpose-built for harsh environments, our LoRa pressure sensors provide reliable, long-range monitoring of critical infrastructure and equipment. With up to 15 km range and 5+ year battery life, they're perfect for remote and hard-to-reach level or position monitoring. The sensor uses a Hersman Pressure Transmitter to measure air or water pressure. The LoRa wireless technology is used to provide ultra-long range spread spectrum communication with high interference immunity whilst minimizing current consumption.
Key Applications
Water Supply Networks
Monitor water pressure in pipelines, reservoirs, and pumping stations to detect leaks, bursts, and ensure optimal flow and system health.
Industrial Process Monitoring
Track air and liquid pressure in tanks, vessels, and pipelines for chemical, manufacturing, and process industries to maintain safety and efficiency.
Agriculture & Irrigation
Monitor irrigation line pressure, pump performance, and tank levels to optimize water usage and prevent equipment failure.
Building & HVAC Systems
Monitor air and water pressure in heating, ventilation, and cooling systems for commercial and residential buildings to ensure comfort and efficiency.
Environmental & Research
Monitor groundwater, river, and reservoir pressure for environmental studies, flood prediction, and resource management.
Technical Specifications
The following are generic technical specifications for the LoRa level sensors :
Features
- Sensor: Hersman
- Range: 0 to 1 MPa
- Accuracy: 0.2% FS ±0.05%
Connectivity
- LoRaWAN: Class A
- Modulation: Spread spectrum
- Region: USA, AUS, EU, SA
- Certification:
- FCC, AN/NZS, EN300220
Environmental
- Life: 5 years
- Operating temp: -20°C to +60°C
- Power: Battery Lithium
- Solar: option
- Housing: UV resistant
Installation
- Sensor Thread M14 x 1.5
- Magnetic mounting
- Screw/bolt mounting
- Pipe clamp options
- No wiring required

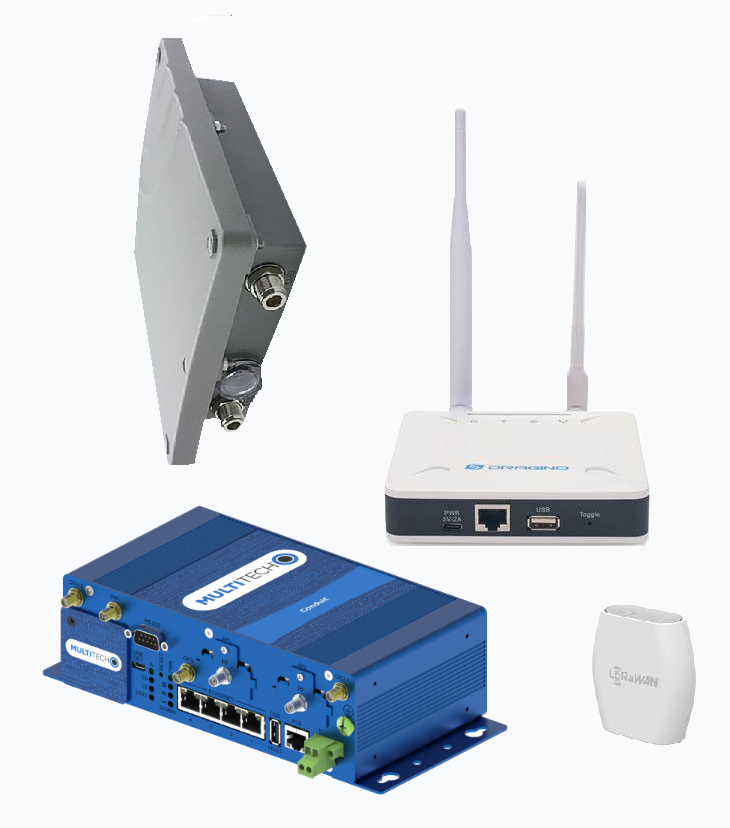

AUS‑iot Gateway
The powerful communication hub that connects all your IoT devices. Featuring LoRaWAN technology for long-range, low-power connectivity with seamless cloud integration and local data processing.
Key Features
LoRaWAN Technology
Long-range, low-power connectivity up to 15km range
Multi-Device Support
Connect up to 1000 devices through a single gateway
Edge Computing
Local data processing and storage capabilities
Secure Communications
End-to-end encryption with enterprise-grade security
get in touch
For more information on our products and services.
